Heavy Duty Cargo Truck Van 18T 6 Wheelers 4X2

Product Categories
QINGTE GROUP SPECIAL VEHICLES CO., LTD
Contact Now

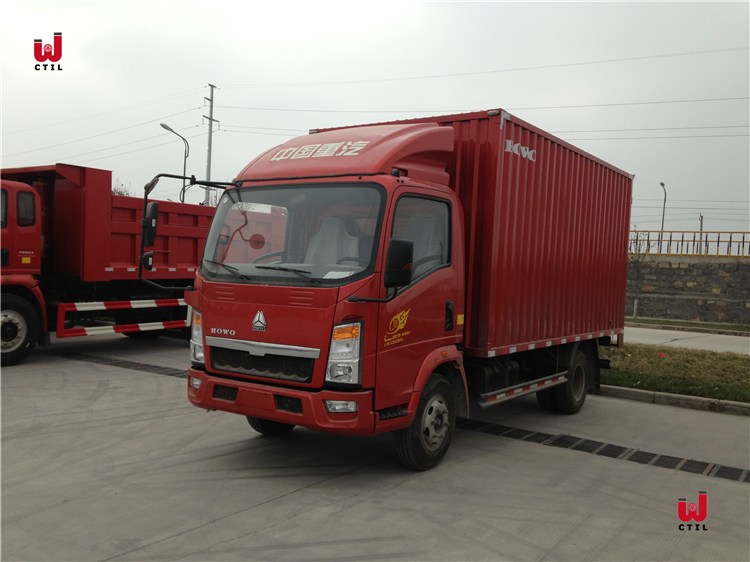

Heavy Duty Cargo Truck Van 18T 6 Wheelers 4X2

Brand Name : SINOTRUK HOWO

Model Number : ZZ1167M4611

Certification : CCC,ISO

Place of Origin : CHINA

MOQ : 1unit

Price : USD17000-25000/unit

Payment Terms : 30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight

Supply Ability : 3000units/month

Delivery Time : 30-45 days

Packaging Details : Nude packing after painted wax

Loading capacity : 15-18tons

color : red, yellow,green,white,blue,black,etc.

Usage : for goods transportation,such as home appliance

air seat : optional

Model number : ZZ1167M4611

Engine : WD615.62,266HP

Gearbox : HW19710

Contact Now

China Van Truck HOWO 4X2 6 Wheelers 18T Cargo Box Heavy Duty Cargo Truck



China Heavy Duty Truck HOWO 4X2 18T Cargo Box Truck are "universal vehicles" other than warehouse trucks. Except that they can transport department stores like warehouse trucks, they are mainly used for larger items and open cargo. The box is convenient for workers to carry out lifting operations.



1. Cargo box Truck technological specifications



Model ZZ1167M4611
Driving Type 4x2
Weight (kg) Curb Weight 7850,8000
Rated Loading Capacity (kg) 18000
Gross Vehicle Weight (kg) 16000
Dimension (mm) Overall Dimensions 8300,8370,8487×2496×3048,3080
Carriage Dimensions 5540,5580,5700×2400,2320×600,800
wheelbase 4600,5600
Maximum Speed(km/h) 102,111
Economical Speed(km/h) 75
Turning diameter(m) 14
Engine Engine Type WD615.62,WD615.87,WD615.69,WD615.47
Fuel Diesel
Cylinder Quantity 6
Rated power(kW)/Rev(r/min) 196,213,247,273/2200
Max. Torque(N*m)/Rev(r/min) 1060/1300-1600
Horse Power(HP) 266,290,336,371
Displacement (ml) 9.726
Emission Euro II
Gear-box HW19710
Clutch(mm) 430
Rear Axle Type 7 (disc/ drum), 9 (disc/ drum)
Speed Ratio Hub reduction drive axle: HC16
Oil Box(L) 400
Suspension(Front,Back) 9/12
Tyre 11.00-20,11.00R20,12.00-20 16PR,12.00R20 16PR,315/80R22.5 16PR



2. Choose your truck

<2 Tons

Driving Model:4x2

Engine:50hp

Gearbox: Manuel Transmission

Tire:8.25,9.0,10.0

payload:0.5-1.5t
3Tons to 10tons Heavy Duty Cargo Truck Van 18T 6 Wheelers 4X2

Driving Model:4x2

Engine:65hp,90hp,110hp,115hp,130hp,160hp

Gearbox: Manuel Transmission

Tire:8.25,9.0,10.0

payload:3-15t

15tons to 25tons Heavy Duty Cargo Truck Van 18T 6 Wheelers 4X2

Cabin:Long Cab,with one bed

Engine: 266hp,290hp,336hp

Gearbox:Manual Transmission with 10 forwards and 2 reverses

Tire:1200R20 Radial tire, 12R22.5Tubless tire

Box Length:5.5-8.5m

25tons to 40tons Heavy Duty Cargo Truck Van 18T 6 Wheelers 4X2

Cabin: long cabin, one sleeper

Engine: 266hp,290hp,336hp,371hp

Gearbox: Manual Transmission with 10 forwards and 2 reverses

Tire:1200R20 Radial tire, 12R22.5Tubless tire

Box Length:7-9.3m



3. Factory

Heavy Duty Cargo Truck Van 18T 6 Wheelers 4X2

4. Payment Terms&Packing&Shipping

Payment Terms: TT or L/C

Packing: Nude packing after painting wax or according to your requirement.

Shipping:By bulk cargo carrier, RORO, Container

5.  Applications:

It's suitable for Logistics business, for transport all kinds of goods, such as machine, equipment, coal and so on.

Heavy Duty Cargo Truck Van 18T 6 Wheelers 4X2

6. Warranty

(1) 12 months or within 120,000km, which comes the first.
(2) Genuine parts will be offered with cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to maintain trucks for overseas customers.





Heavy Duty Cargo Truck Van 18T 6 Wheelers 4X2
